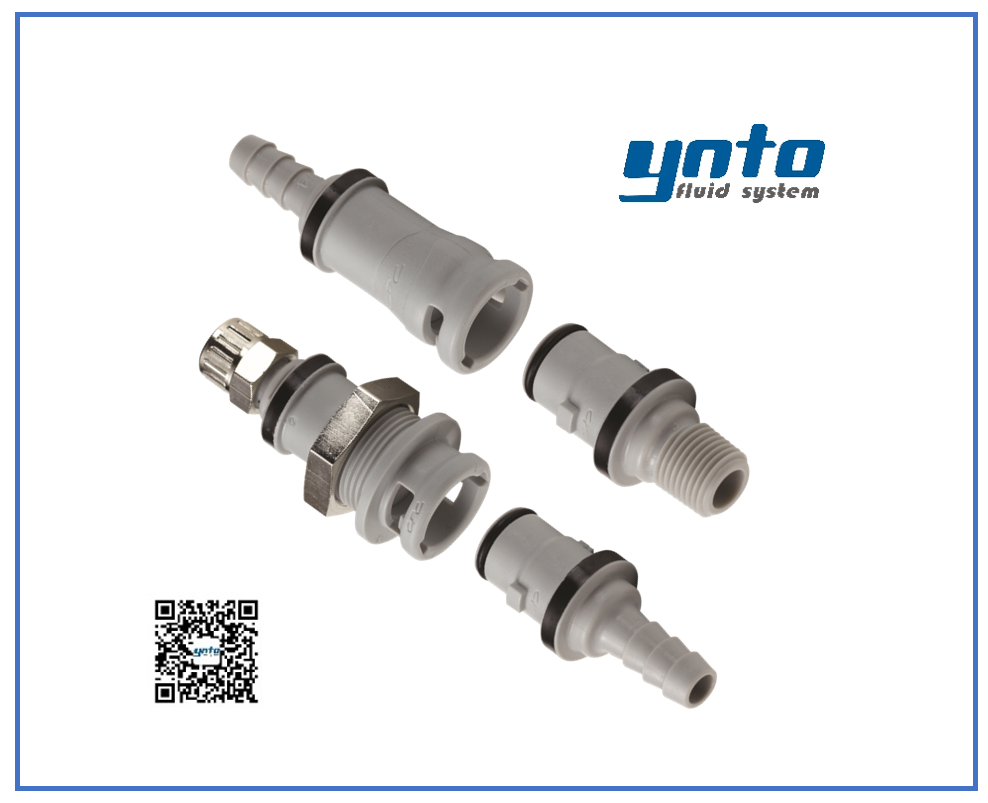

NS212系列接頭，美國CPC接頭，CPC接頭

NS212 系列

NS212系列接頭跟CPC其它無溢漏系列的接頭一樣，為提供快速、安全、真正無泄漏管線連接而設計。NS212 提供了一種快速、旋接式接頭，帶一體式鎖緊裝置和雙面無泄漏截止閥。NS212 亦具有抗化學性，是許多應用的理想產品。

Features		Benefits
	Efficient, non-spill design		Disconnect under pressure with no spills
	Multiple seal materials		Broad chemical compatibility for diverse applications
	Twist-to-connect locking		Easy, non-spill connections in tight spaces
	Compact design		High flow in a small connector
	Ultra low air inclusion		Minimizes contaminants, reduces the need to purge lines

Pressure:		Vacuum to 45 psi, 3.1 bar
Temperature:		32° F to 120° F/0° C to 49°C
Flow capacity:		Cv~0.45
Spillage:		<0.025 cc/disconnect
Inclusion:		0.009 cc/connect
Materials:
Main components and valves:		Glass-filled polypropylene
Valve spring:		316 stainless steel
Seal material:		EPDM (FKM/Simriz FFKM optional)
Color:		Gray with black accent standard
Tubing Sizes:		1/8" to 1/4" (3.2mm to 6.4mm)


WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions. Use the graphs above as a guide.
